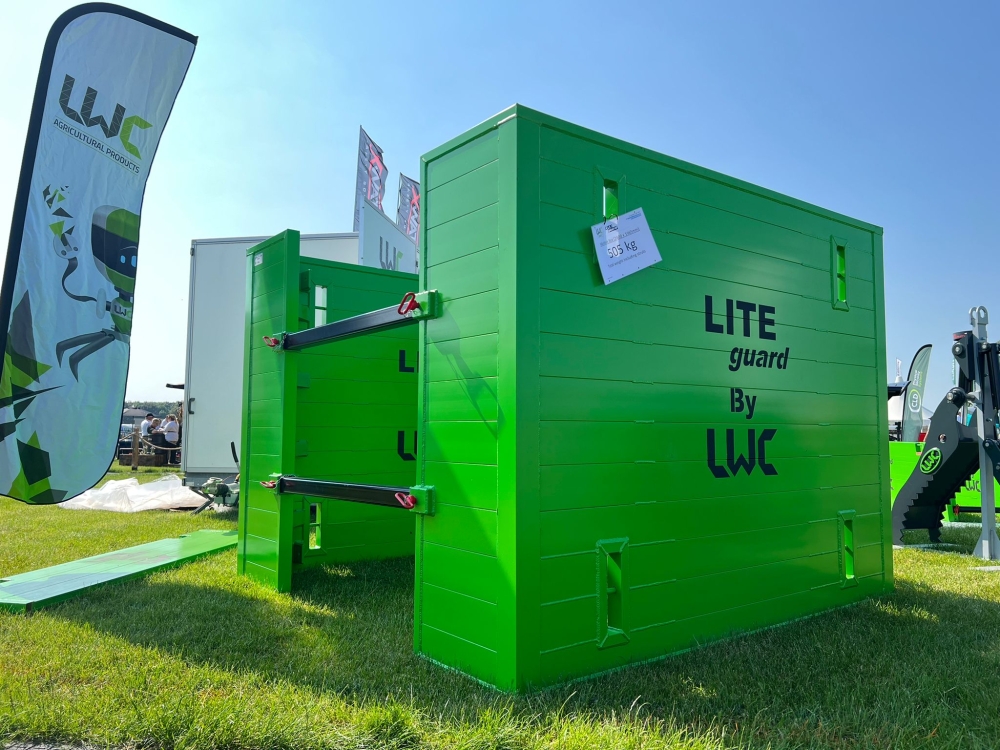

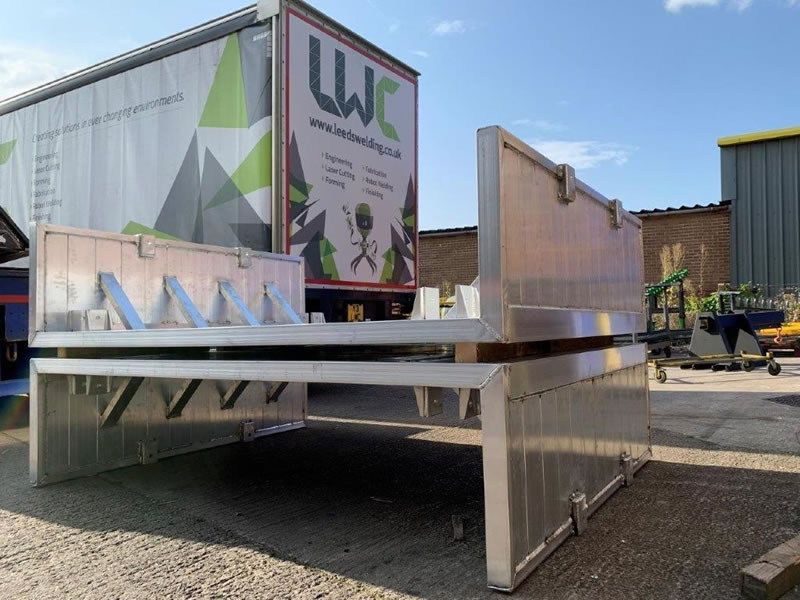

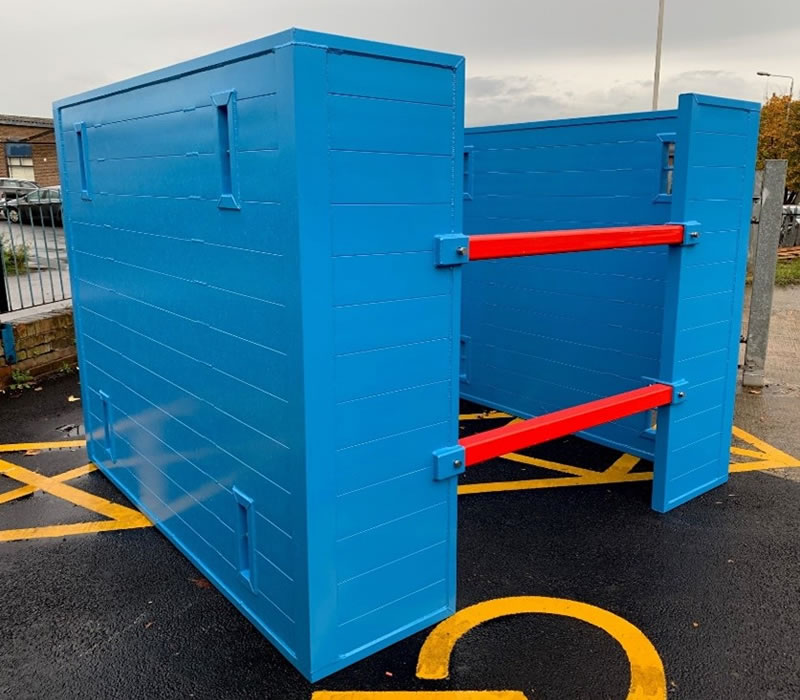

The LITE guard Manhole Boxes are lightweight, aluminium shoring panels specifically designed for use around manholes, pits, and pump stations. They facilitate the rapid construction and installation of precast concrete manholes, small chambers, and tanks, enhancing efficiency and safety in confined excavation environments.
|

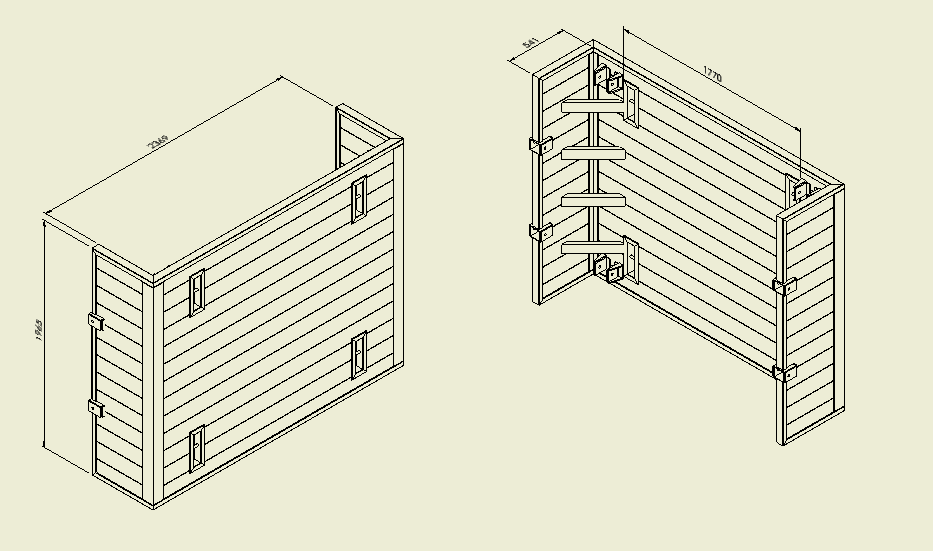

Panel Thickness |
Panel Type |
Panel Length |
Panel Height |
Panel Weight |
Internal Clearance Length |
Max Depth |
Working Load Limit |
|
56mm |
Lower |
2400mm |
1965mm |
211 kg |
2200mm |
4000mm |
30 kPa |
|
56mm |
Upper |
2400mm |
1215mm |
136 kg |
2200mm |
4000mm |
30 kPa |
Dimensions are nominal.
Key Features:
-
Lightweight and Portable: Constructed from high-strength aluminium, these boxes are significantly lighter than traditional steel alternatives, reducing transportation and handling costs. The 2400 mm x 1965 mm unit weighs approximately 500 kg, making it manageable for lifting by excavators with a lifting capacity of 3 tonnes and above.
-

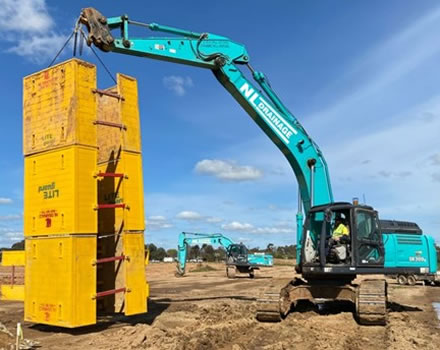

Stackable Configuration: The Manhole Boxes can be stacked to accommodate various excavation depths. By inverting one box on top of another and installing extension joiners, contractors can achieve greater depths without the need for additional equipment.
-

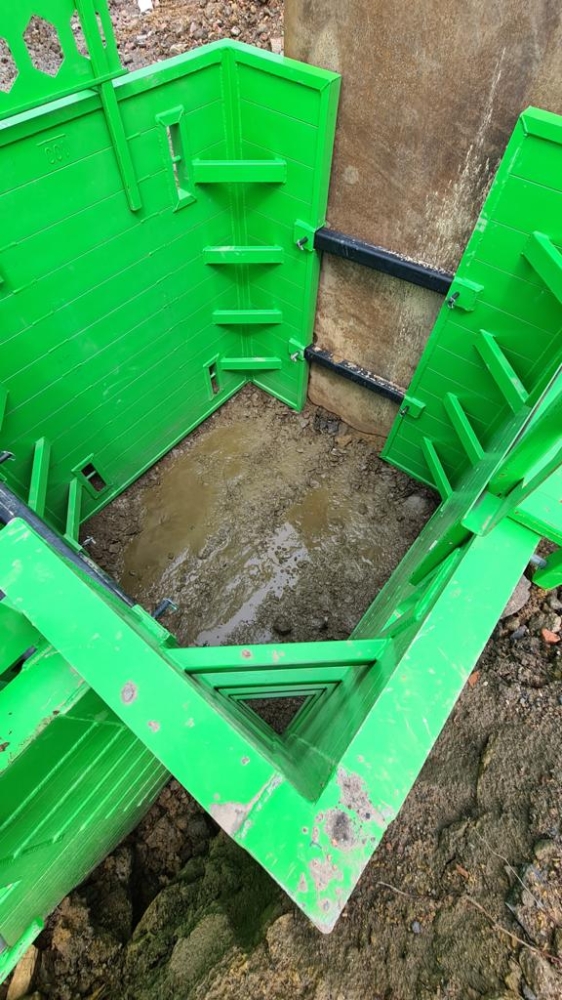

Enhanced Safety: Designed for 'dig and place' operations, these boxes eliminate the need for workers to enter the excavation, reducing the risk of accidents.
-
Versatile Applications: Ideal for contractors working on wet wells, manholes, and large-diameter pipes, the Manhole Boxes are suitable for use in various sectors, including utilities and municipal services.
Further information can be found here - https://www.liteguard.co.uk/
