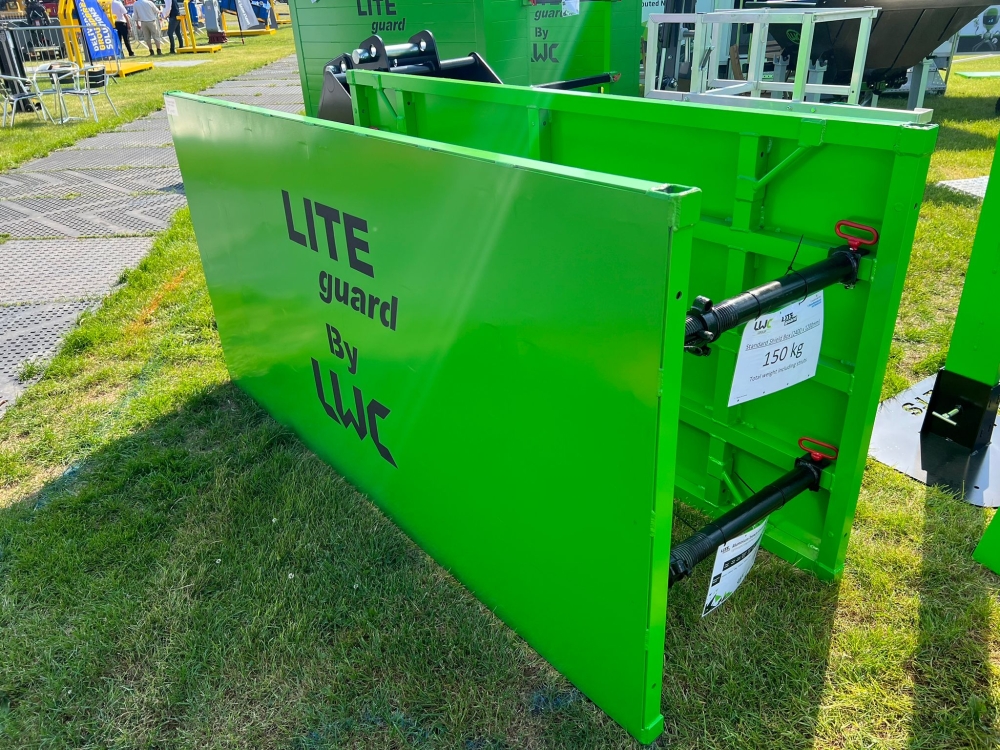

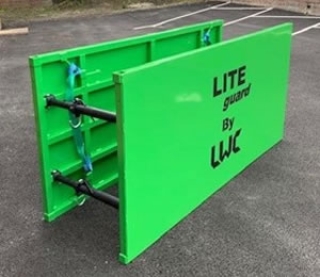

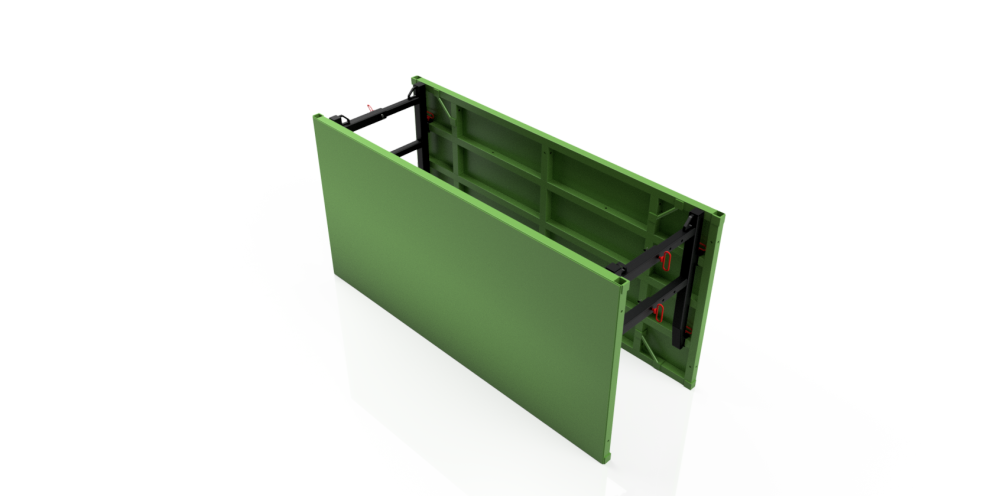

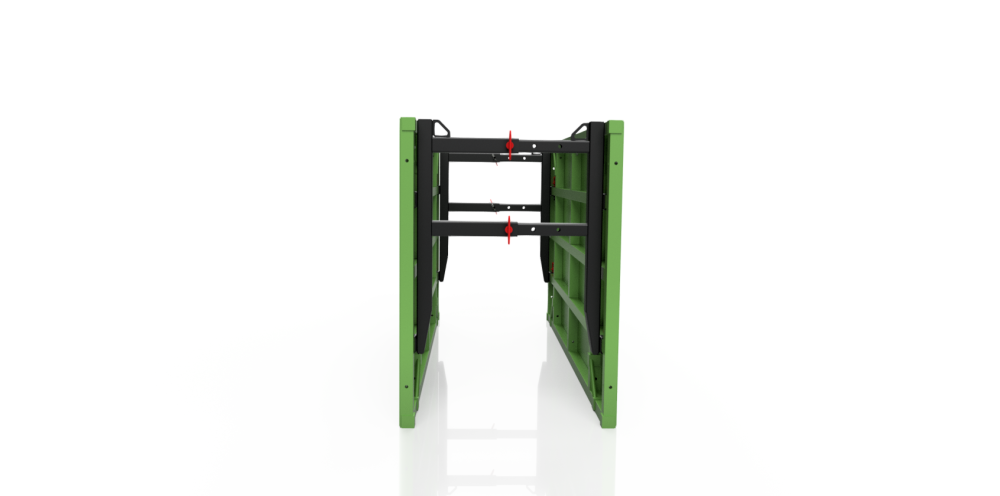

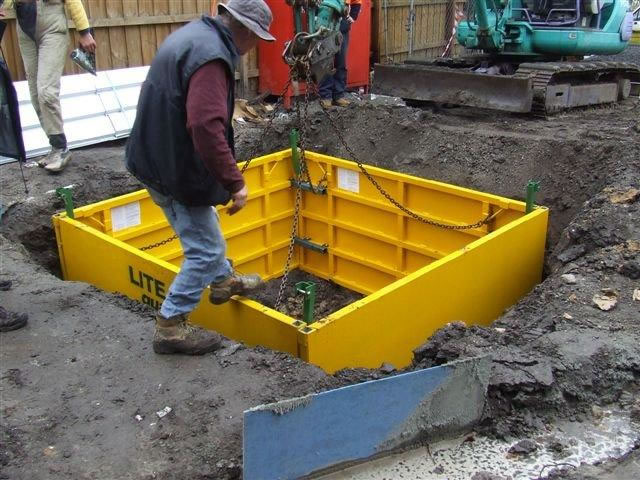

LITE guard Standard Shields are lightweight, aluminium trench shoring systems designed for domestic plumbing and maintenance tasks. They can be disassembled quickly—within minutes—and transported to confined spaces such as backyards or areas with restricted access. Additionally, these shields can be inverted for use in small shafts, enhancing their versatility.
|
Panel Thickness |
Panel Type |
Panel Length |
Panel Height |
Panel Weight |
Internal Clearance Length |
Max Depth |
Working Load Limit |
|
56mm |
Unit |
2400mm |
1200mm |
63 kg |
2150mm |
3600mm |
20 to 50 kPa |
|
56mm |
Unit |
1800mm |
1200mm |
51 kg |
1550mm |
3600mm |
20 to 50 kPa |
|
56mm |
Unit |
1200mm |
1200mm |
39 kg |
950mm |
3600mm |
20 to 50 kPa |
Dimensions are nominal.
Key Features:
-
Lightweight Design: Made from aluminium, these shields are easy to handle and transport.
-
Quick Assembly and Disassembly: Designed for rapid setup and takedown, facilitating efficient workflow.
-

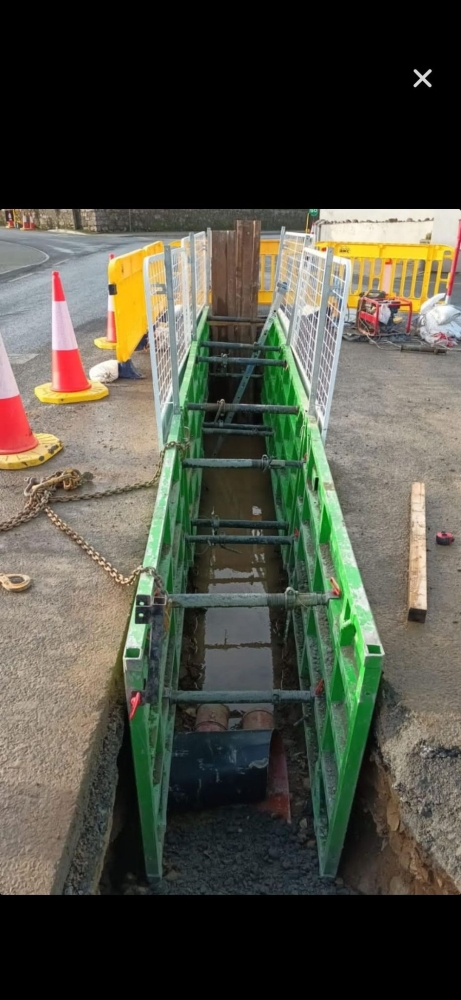

Versatile Usage: Suitable for various applications, including sewer, stormwater, water mains, gas services, and minor excavations.
-
Compact Storage: Their design allows them to fit into the back of a utility vehicle, making transportation straightforward.
Specifications:

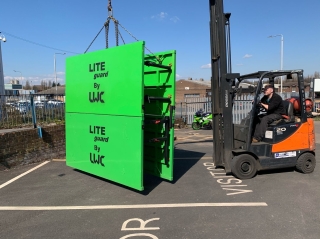

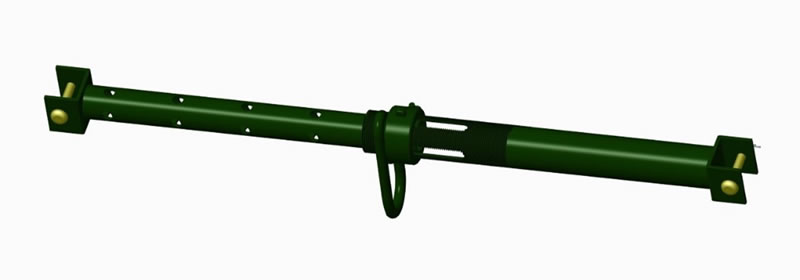

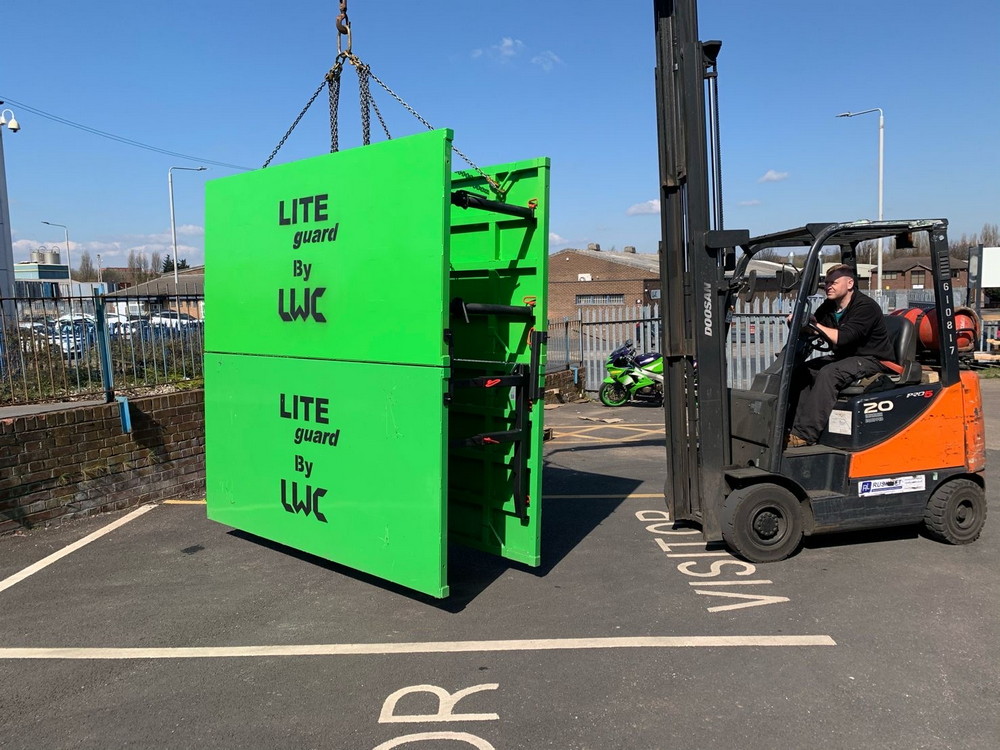

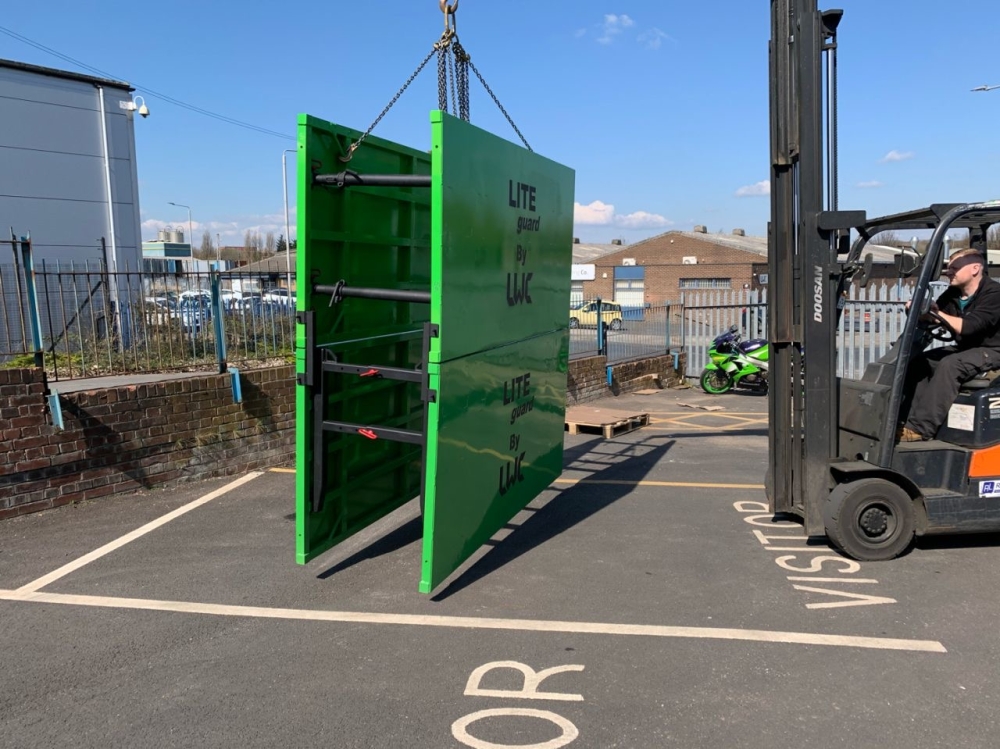

These shields are compatible with mini excavators ranging from 2.5 to 7.0 tonnes. They feature multiple attachment points for adjustable spreader bars, which are available in two sizes: 600–900mm and 1000–1800mm. Each panel is equipped with four built-in lift points, and it's recommended to use a four-leg lifting chain or double lifting straps for safe lifting.
LITE guard Standard Shields comply with global safety standards, including AS/NZ 4744.1 – 2000, BS EN 13331.1 & 2 – 2002, and OSHA Sub Part P, ensuring reliable performance and safety during use.
Further information can be found here - https://www.liteguard.co.uk/
